Chip Resistor

Total Pb
free Resistor

Scroll Down
Product Search Component Library Buy Now

Environmentally Friendly Resistor

General products contain conductive particles in the resistor and Pb in the glass. We produce totally Pb-free chip resistors that meet RoHS standards for both raw materials and chips. Pb-free resistors are environmentally friendly products that are equivalent to general products in all characteristics, including electrical characteristics.

Total Pb free Resistor
Product Search

Realization of eco-friendly products that are totally Pb-free

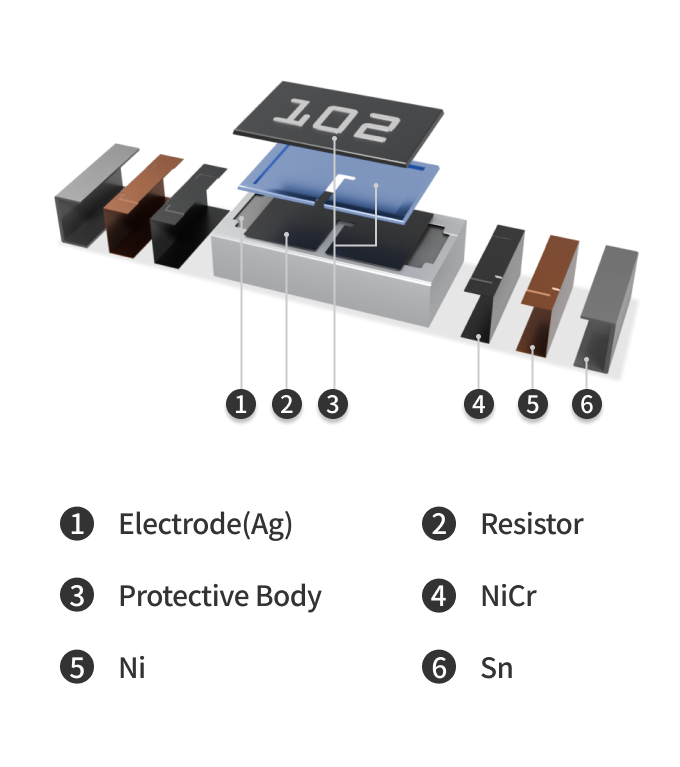

Pb containing - Components, General Model, Total Pb free Model
Pb containing
Components General Model Total Pb
free Model
① Electrode None None
② Resistive Contained None
③ Overcoat None None
④ NiCr None None
⑤ Ni None None
⑥ Sn None None
Pb contents of
whole chip		 1000~3000ppm None

※ General model is compliant with the EU RoHS regulations since Pb content in the resistor component is under exemption as published with Directive 2011/65/EU.

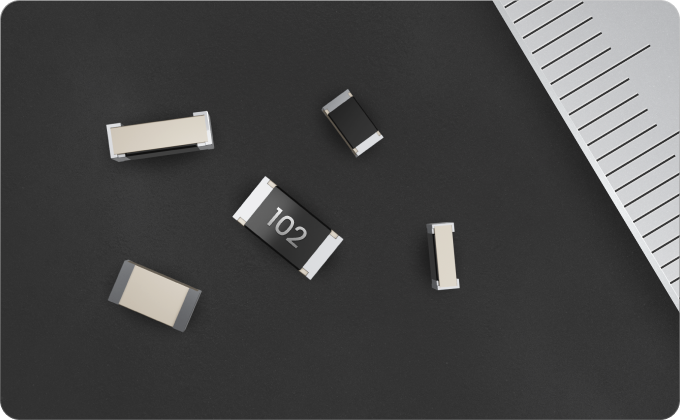

Lineup of Various Sizes
Same Lineup as General Products, Including Small to Large Sizes (0402~6432mm), Array Resistors and Sulfur-Resistant Products.

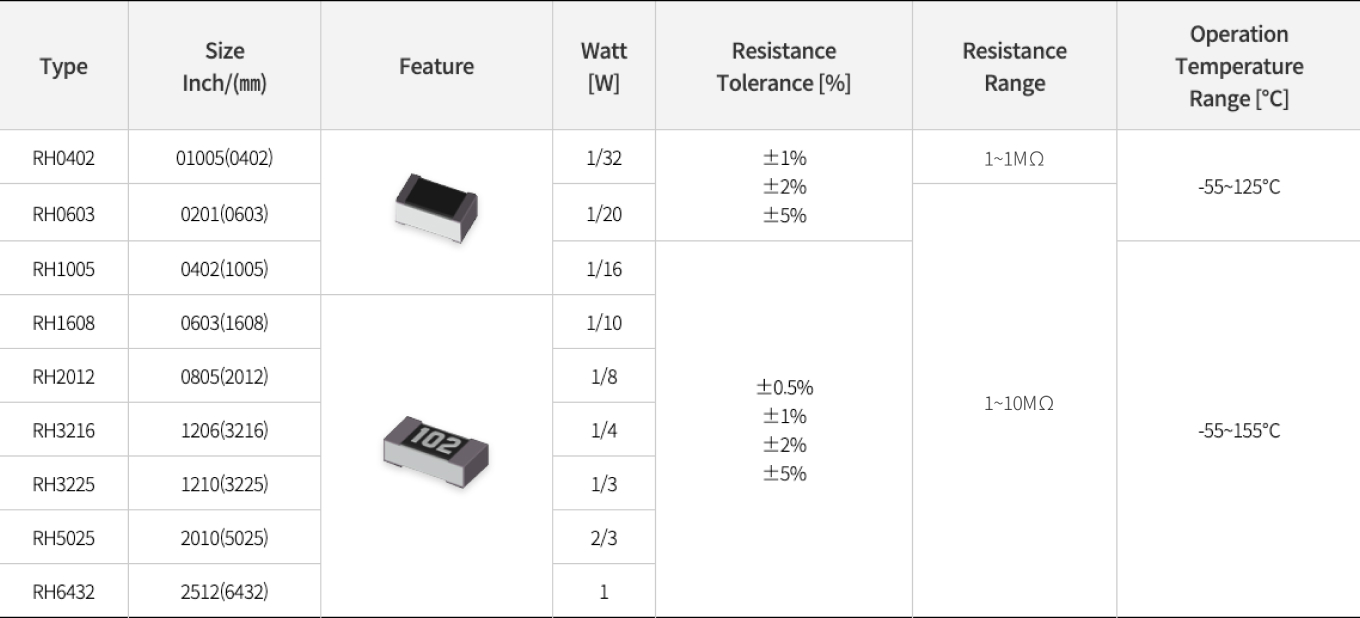

Pb free General

Enlarge this Image

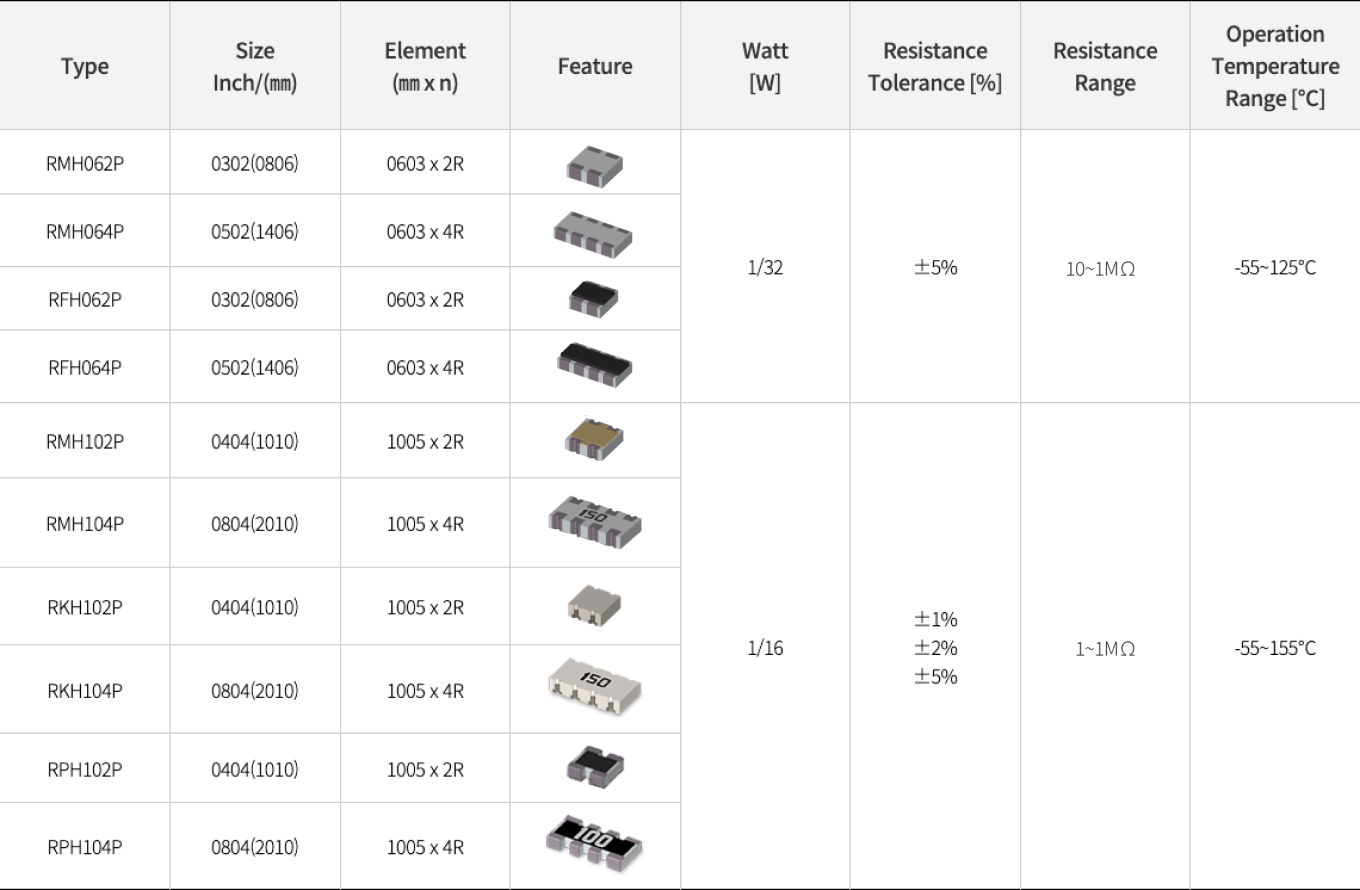

Pb free Array

Enlarge this Image

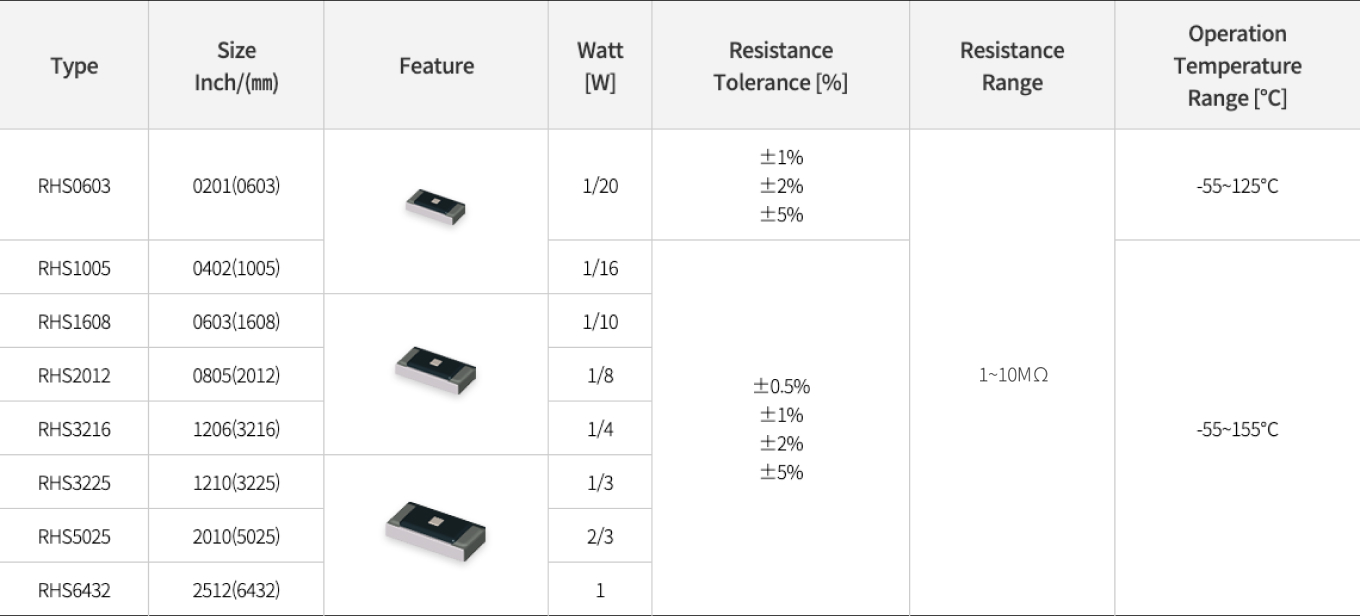

Pb free Anti-Sulfur General

Enlarge this Image

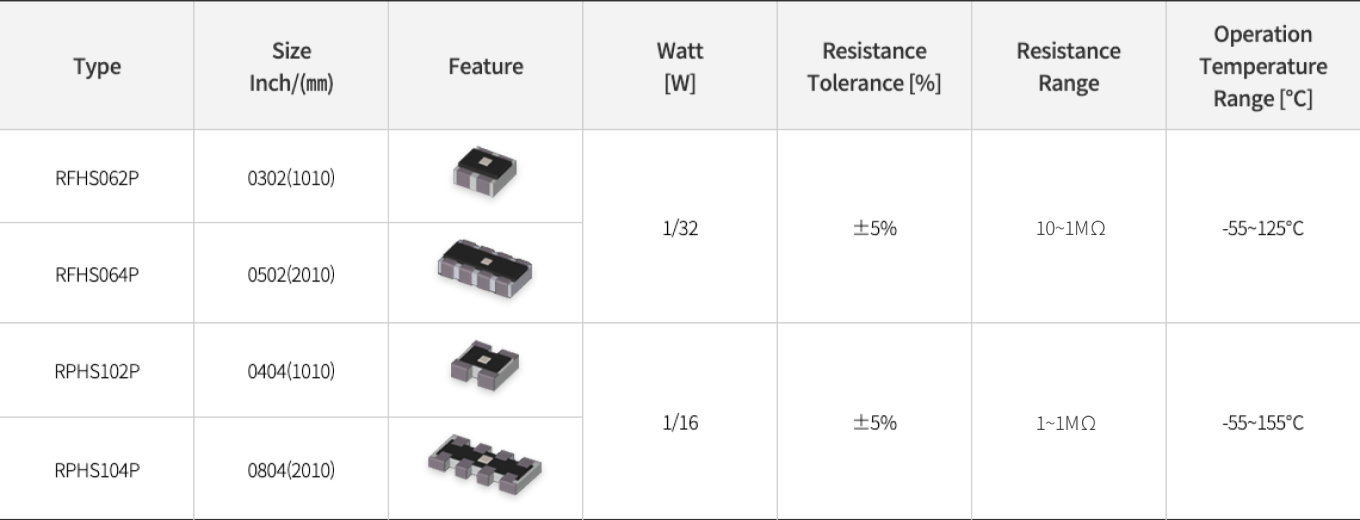

Pb free Anti-Sulfur Array

Enlarge this Image

Application

Product Search
