技术 - Article 2025.06.18

三星电机125°C温度保证 ADAS用MLCC 0201 inch X7T 1.0㎌ 6.3V新品问世

▷ 三星电机推出用于ADAS (Advanced Driver Assistance System)市场，在高温(125℃)下也能保证可靠性的车规级MLCC新产品0201 inch (0.6×0.3㎜) , X7T (-55 to 125℃), 电压6.3V, 电容量1㎌。目前量产中，可提供样品。



▷ 顺应汽车系统的零部件（传感器，摄像头，SoC等）高性能化及小型化趋势，MLCC的小型高容化要求也在增加。本产品符合AEC-Q200标准，同时在小尺寸0201 inch上实现高容量(1㎌以上) ，有助于减少安装面积，提高空间效率。

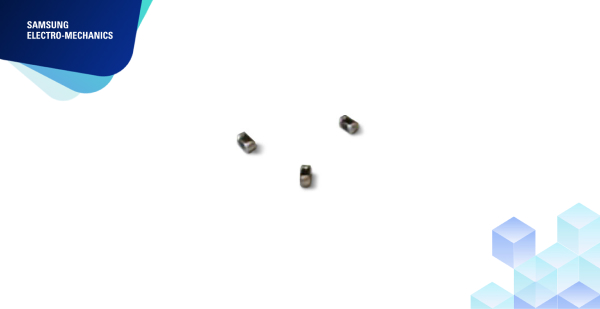

CL03Z105MQR6PN# 제품 이미지.jpg

신제품 CL03Z105MQR6PN#의 스펙을 정리한 표, Size(inch/mm), Cpacitance, Rated Voltage, TCC에 대한 내용을 제공합니다.

Samsung

Size

(inch/mm)

Capacitance

Rated Voltage

TCC

CL03Z105MQR6PN#

0201/0603

1㎌

6.3Vdc

X7T

(X7T : -55℃~+125℃温度范围内容值变化率 : -33~+22%)

​

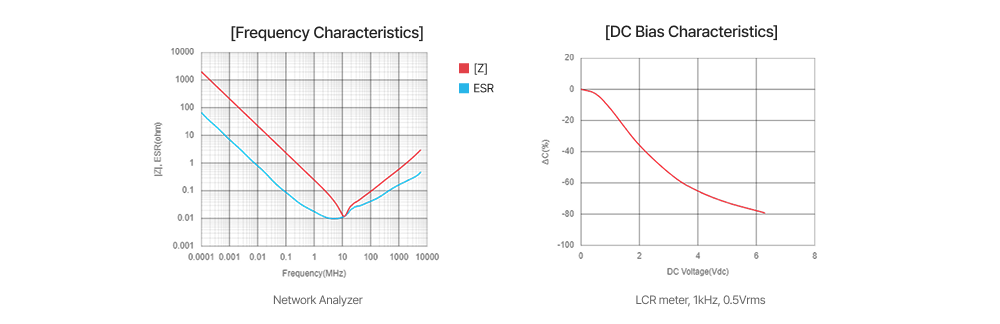

Characteristics Data

CL03Z105MQR6PN# 제품의 Frequency Characteristics​​, DC Bias Characteristics​​ 그래프.png

包括样品请求在内的其他咨询请点击这里。
