技术 - Article 2024.08.21

Application Guide > Automotive > DC-DC Converter

受xEV电池充电功率上升的影响，DC-DC Converter的功率也随之上升，因此对降低EMI（电磁干扰）用MLCC加强信赖性的要求持续增加。



对此，三星电机正在扩大供应满足高电压电池线的降低EMI和安全性及耐久性要求的High Voltage、High Bending Strength产品系列。

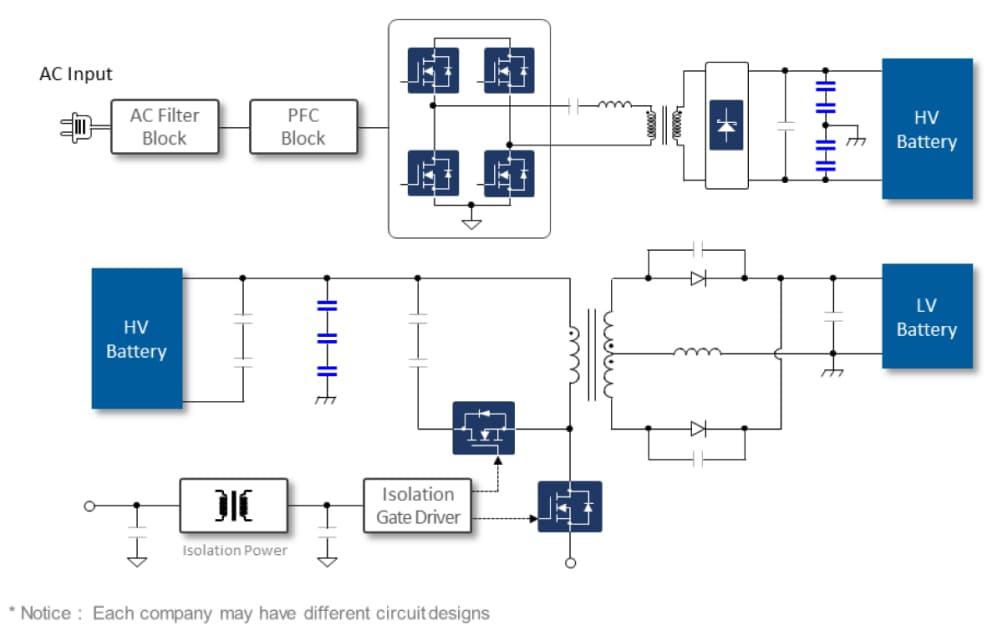

회로도 이미지.jpg


MLCC 趋势 : 高电压, 高抗板弯强度

▷ 额定电压 250Vdc ~ 2kV (New)

▷ 在AEC-Q200上保证5mm弯曲强度

 → 推荐:  X7R PJ系列



Size

(inch/mm)

Rated Voltage

[Vdc]

TCC

Capacitance

Part Number

MP

Status

Sample

Availability

1812/4532

2000

X7R

2.2㎋

CL43B222KJRRPJ#

NEW

Available

1812/4532

1000

X7R

100㎋

CL43B104KIURPJ#

2024.3Q

Available

1812/4532

630

X7R

220㎋

CL43B224KHU6PJ#

NEW

Available

1812/4532

250

X7R

470㎋

CL43B474KEU6PJ#

NEW

Available

1812/4532

630

X7R

100㎋

CL43B104KHU6PJ#

In MP

Available

1812/4532

630

X7R

47㎋

CL43B473KHU6PJ#

In MP

Available
