技术 - Article 2025.04.16

Application Guide > Automotive > SSD (Solid State Drive)

随着汽车架构系统的升级趋势，对存储的品质及性能强化要求也逐步提升。



同时ADAS (Advanced Driver Assistance System), IVI (In-Vehicle Infotainment) 等新一代应用领域也必须具备高度的计算性能及通信技术，因此正逐步扩大采用高效率/高性能的SSD。



三星电机拥有可以在本应用内优化安装空间及保证电源稳定的X8*, 0603 inch以下的MLCC系列产品。

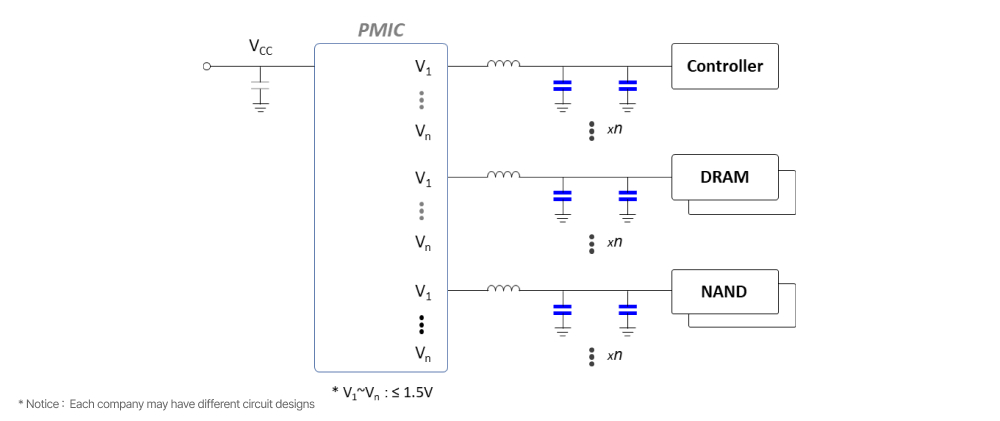

전장용 SSD (Solid State Drive) 관련 회로도 이미지.jpg

MLCC 趋势 : 高容, 高温

▷ 小型化

▷ 高可靠性

 → 推荐方案 :  X8* PN系列



SSD (Solid State Drive) Application에 적용되는 MLCC 라인업 표, CL03M105MRR6PN#, CL10E475KQ96PN#, CL10M475KQ96PN# 제품의 Size(inch), Rated Voltage[Vdc], TCC, Capacitance, Part Number, MP Status, Sample Availability에 대한 정보를 제공합니다.

Size

(inch/mm)

Rated Voltage

[Vdc]

TCC

Capacitance

Part Number

MP

Status

Sample

Availability

0201/06034.0

X8M

1㎌

CL03M105MRR6PN#

NEW

Available

0603/1608

6.3

X8L

4.7㎌

CL10E475KQ96PN#

In MP

Available

0603/1608

6.3

X8M

4.7㎌

CL10M475KQ96PN#

In MP

Available
