技术 - Article 2025.01.15

Application Guide > Automotive > LDC (低压DC/DC转换器)

为了提高电动汽车的能源效率及确保行驶距离, 动力总成小型/轻量化的集成趋势正在扩大。

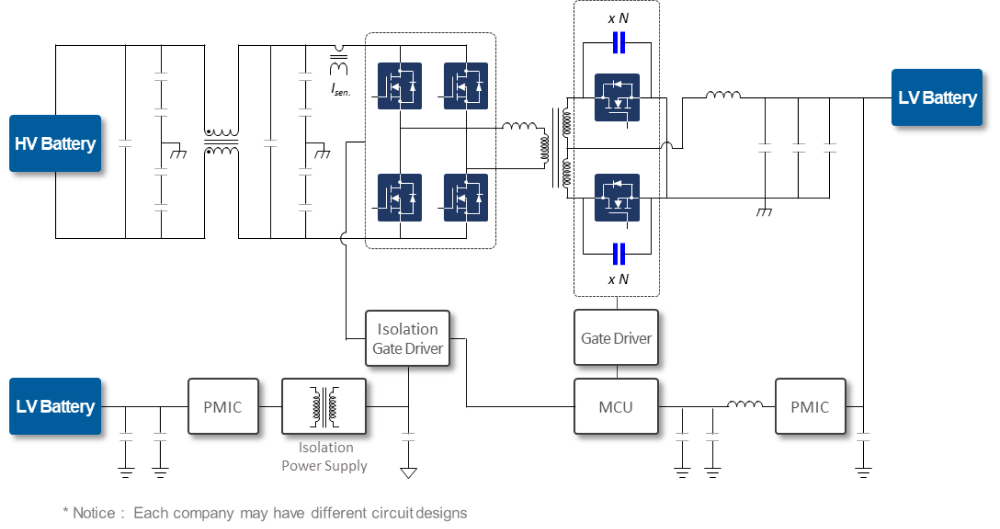

相应驱动系统要求更高的电源容量和稳定的电源供应，在LDC (低压DC/DC转换器)上采用的高可靠性MLCC也在增加，来消除开关时产生的高频噪音。



三星电机拥有适用于此应用的小型，高容值，高电压的C0G, 0805inch的MLCC line-up。






MLCC 趋势 : 小型化, 电压稳定

▷ 小尺寸 & 高容值

▷ 高电压

 → 推荐方案 : C0G PN系列​



Size

(inch/mm)

Rated Voltage

[Vdc]

TCC

Capacitance

Part Number

MP

Status

Sample

Availability

0805/2012630

C0G

2200pF

CL21C222JHY3PN#

NEW

Available

0805/2012

630

C0G

1200pF

CL21C122JHY3PN#

NEW

Available

0805/2012

630

C0G

1000pF

CL21C102JHY3PN#

NEW

Available

0805/2012

630

C0G

470pF

CL21C471JHC1PN#

In MP

Available

0805/2012

630

C0G

100pF

CL21C101JHC3PN#

In MP

​Available
