Tech - Article 2025.02.05

Samsung Electro-Mechanics Introduces the World's First Industrial MLCC with 25V Rating (0805 inch, X6S, 22uF, 25V)

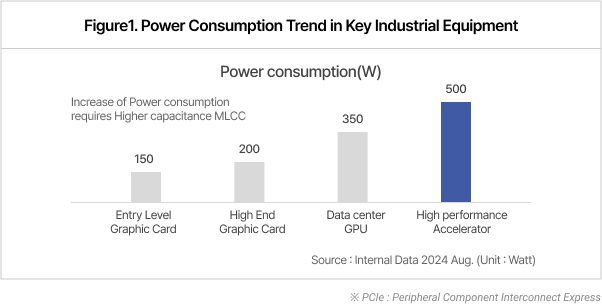

▷ High-speed interfaces are essential for processing large amounts of data and executing computations. PCIe-based high-performance devices, like AI accelerator, require high power and stable voltage delivery. This demand is increasing the need for miniature, high-capacitance, high-temperature MLCC. [Figure 1]



1_figure 영문.jpg

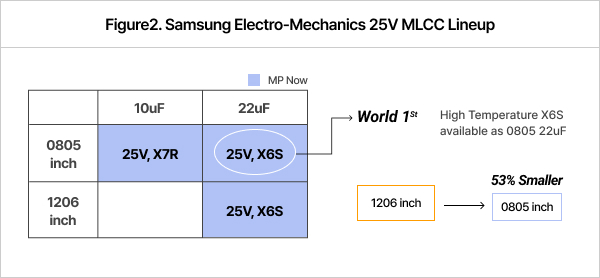

▷ High-performance AI accelerators, which consume approximately 500W of power, are prone to ripple voltage as power consumption increases. High-capacitance products play a crucial role in reducing these voltage fluctuations and ensuring stable power supply. As power consumption rises, so does the current flowing, generating heat and necessitating components that can withstand high temperature. AI accelerators usually operate on a standard 12V power input, creating a need for 25V-rated MLCC. To meet these requirements, 22uF 25V X6S MLCC, which offers higher capacitance compared to the previous 10uF MLCC, has been developed.  [Figure 2]



1_figure 영문2.jpg




Samsung

Size (inch)

Capacitance

Rated Voltage

TCC

CL21X226MAYNNW#

0805

22uF

25V

X6S




SAMSUNG 25V MLCC Line-up

Samsung

Size (inch)

Related

Voltage

[Vdc]

TCC

Capacitance

MP

Status

Sample

CL21X226MAYNNW#

0805

25

X6S

22uF

MP

Available

CL31X226KAK6NW#

1206

25

X6S22uF

MP

Available
