Inductor

Power Inductor

Optimal Inductor Technology for Power Conversion

An inductor for power supplies and circuits, made from metal composite materials. It is primarily used in circuits for converting a specific voltage into a required voltage and serves to supply stable power to the IC. As the inductor is used in the power circuit, it is manufactured to maintain inductance when the current is applied and to have low resistance characteristics.

  • Stable Power Supply

  • Low Resistance Characteristics

Metal Composite

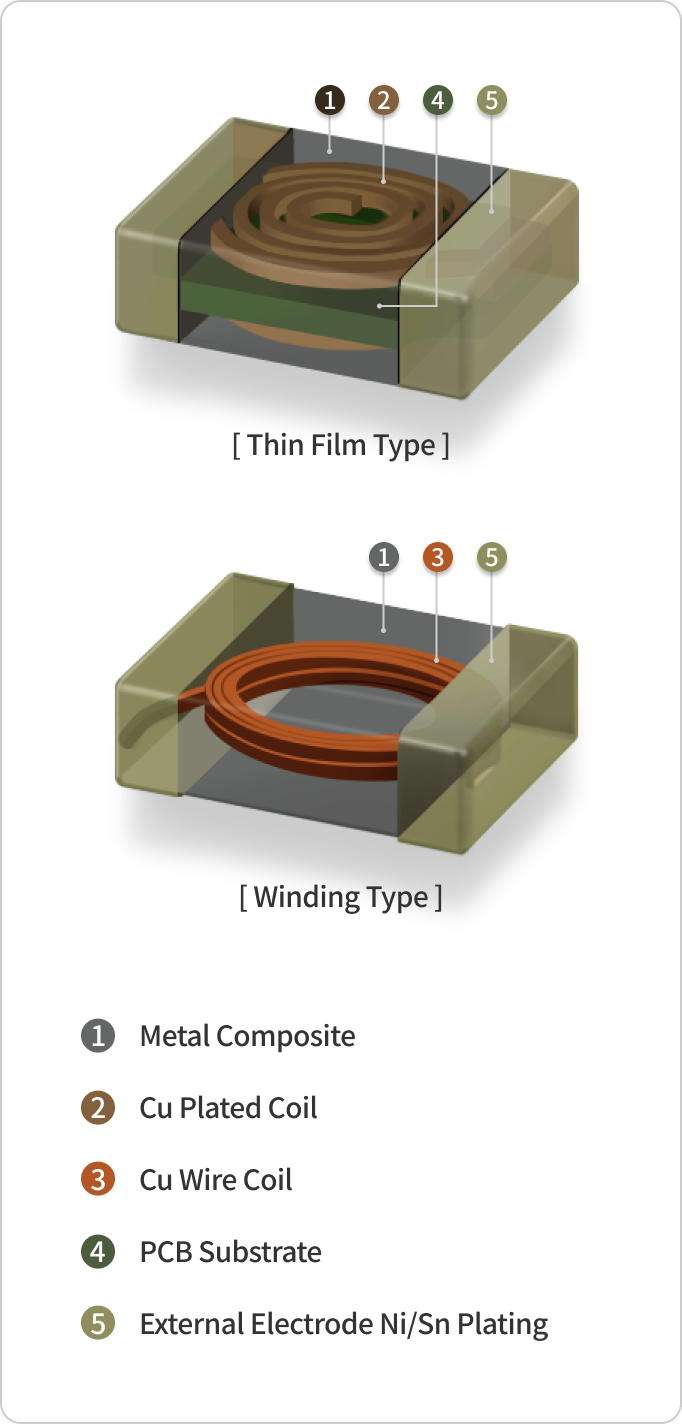

The metal composite type is composed of metal powder-based body material and low-resistance Cu coil. It is divided into the thin-film type and the winding type, according to the coil manufacturing method. Samsung Electro-Mechanics continues to develop and launch high-efficiency products using metal composite materials.

  • High Current
    Maintains High Current Characteristics by Slowing Saturation
  • Low Rdc
    Improves High Current Efficiency with Low DC Resistance

Curation

Sign up for our newsletter to receive news and valuable information about Samsung Electro-Mechanics.

Subscribe

FAQ

  • When you go to the Contact us on the main page or the Product page, you can ask questions about technologies and purchases by each region.

  • 1) Searches can be done through Samsung Electro-Mechanics’ website > Product Search.



    2) Product searches can also be done through the Google search window. Input passive component P/N in the search window > Click on the ‘Samsung Electro-Mechanics : Product Information’ from among the search results > Relevant product page opened

  • If the product you want has been discontinued, our website allows you to search for substitute products. For example, if you’re looking for a substitute for CL10A106MP8NNNC with the same size and capacity, you can follow these steps.



    1)First, you need to understand the Part Numbering System rules. If you don’t remember, click the question mark icon on the Product Search menu, and an information window about the Part Numbering System will pop up.

    2)The numeric values included in a Part Number indicate certain attributes.





    Size is indicated by the third and fourth digits in the number. '10' corresponds to 0603(1608), which means 1.6 mm × 0.8 mm. Capacity is indicated by the sixth through eighth digits. '106' means 6th power of 10×10; that is, 10,000,000 pF = 10.㎌.





    With the spec. information you gave, it is difficult to share the exact part.(need size tol and additional info.)

    I recommend you to use our web library.

    If you use our library below, you can select the model you want to check the electrical performance.



    http://weblib.samsungsem.com

  • 1) Go to “Product Search,” and click on the tab for the product you want.

    2) Enter the Part Number (e.g., CLL5Z105MS3NLNH) to begin the search.

    3) When the search results are displayed, check the “Status” section to see if the product is in “Mass Production” or “Under Development.” In most cases, products not included in the search results are “Discontinued Products.” However, there are some products that are not displayed for other reasons. It would be a good idea to contact our staff to see if it has been discontinued.



    Request : http://www.samsungsem.com/global/support/contact-us/inquiry.do



  • As the resistance value formed during DC current applied, it is indicated as a DCR or Rdc value. The DCR is the resistance value that occurs due to the coil of the inductor. In the device, losses occur due to the resistance value during DC applied(=efficiency decrease), And it affects operation loss as heat source, so when applying to the device, you must take into consideration the loss value and heat capacity by DC resistance.
