2024.08.21

Application Guide > Automotive > DC-DC Converter

xEVバッテリーの充電電力上昇の影響でDC-DCコンバーターの電力が上昇するにつれ、EMI低減用MLCCにおける信頼性強化の要求が増え続けています。



これを受けて、サムスン電機は高電圧バッテリーラインのEMI低減や安全性と耐久性を満たすHigh Voltage、High Bending Strength製品群を拡大、供給しています。

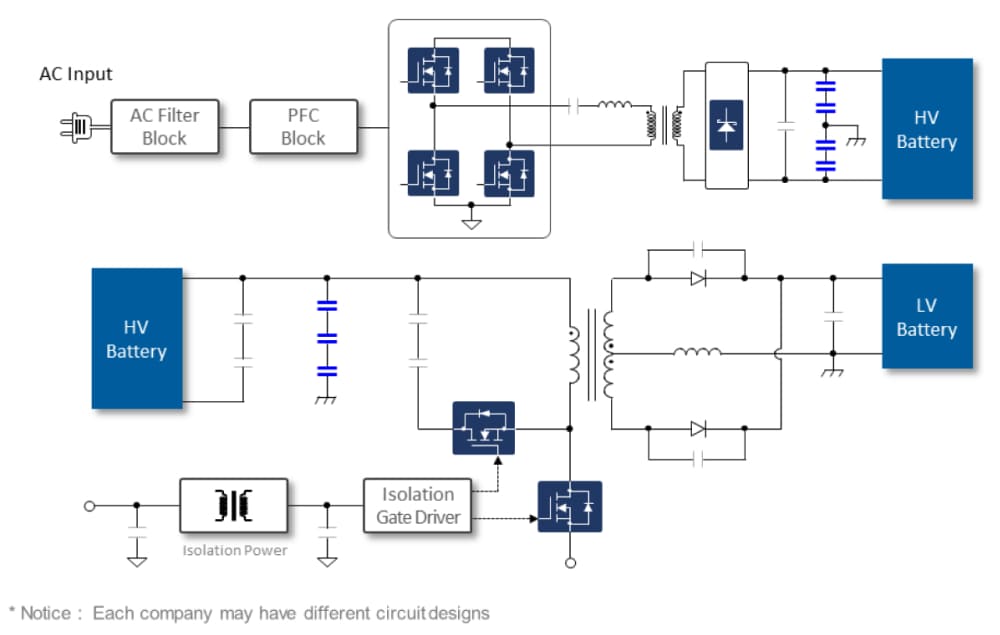

회로도 이미지.jpg


MLCC Trend : High Voltage, High Bending Strength

▷ Rated Voltage 250Vdc ~ 2kV (New)

▷ Guaranteed 5mm of bend on AEC-Q200

 → Recommendation : X7R PJ Series



Size

(mm/inch)

Rated Voltage

[Vdc]

TCC

Capacitance

Part Number

MP

Status

Sample

Availability

4532/1812

2000

X7R

2.2㎋

CL43B222KJRRPJ#

NEW

Available

4532/1812

1000

X7R

100㎋

CL43B104KIURPJ#

2024.3Q

Available

4532/1812

630

X7R

220㎋

CL43B224KHU6PJ#

NEW

Available

4532/1812

250

X7R

470㎋

CL43B474KEU6PJ#

NEW

Available

4532/1812

630

X7R

100㎋

CL43B104KHU6PJ#

In MP

Available

4532/1812

630

X7R

47㎋

CL43B473KHU6PJ#

In MP

Available
