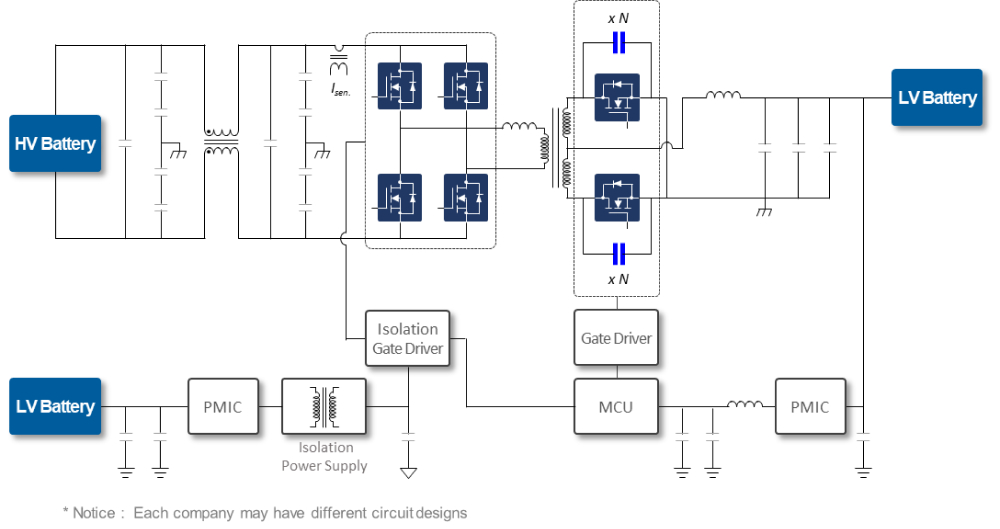

Application Guide > Automotive > LDC (Low-Voltage DC/DC Converter)

電気自動車の電費向上および走行距離確保のためにパワートレインでは小型・軽量化が推進され多様な機能が追加された統合化のトレンドが広がっています。



当該駆動システムでは、より高い電源容量および安定した電源供給が要求され、スイッチング時に発生する高周波ノイズを除去するためにLDC(Low-Voltage DC/DC Converter)に高信頼性MLCCの採用が増加しています。



サムスン電機は本アプリケーションに適用可能な小型、高容量、高電圧のC0G、2012mmサイズの MLCCラインナップを保有しています。






MLCC Trend : Miniaturization, Voltage Stability

▷ Small-Sized & High-Capacitance

▷ High Voltage

 → Recommendation : C0G PN Series ​



Size

(mm/inch)

Rated Voltage

[Vdc]

TCC

Capacitance

Part Number

MP

Status

Sample

Availability

2012/0805630

C0G

2200pF

CL21C222JHY3PN#

NEW

Available

2012/0805

630

C0G

1200pF

CL21C122JHY3PN#

NEW

Available

2012/0805

630

C0G

1000pF

CL21C102JHY3PN#

NEW

Available

2012/0805

630

C0G

470pF

CL21C471JHC1PN#

In MP

Available

2012/0805

630

C0G

100pF

CL21C101JHC3PN#

In MP

​Available
