News

Tech - Article 2025.04.16

Samsung Electro-Mechanics launches 150°C Guaranteed MLCC for Automotive SSD 0201 inch X8M 1.0㎌ 4V

▷ The demand for MLCCs per vehicle is increasing significantly due to the electrification and functional enhancement of vehicles. Miniaturization, high-temperature capability, and expanded capacitance for MLCCs are essential.



▷ Accordingly, Samsung Electro-Mechanics has applied their proprietary technology in ceramic and electrode material fine-particle manufacturing and ultra-precision stacking to develop the 0201 inch (0.6×0.3mm) X8M (-55 to 150°C), rated at 4V and 1㎌. The product is now in mass production. Samples are available upon request.



▷ The product, a compact high-capacitance multilayer ceramic capacitor, CL03M105MRR6PN#, is specialized for Automotive SSD (Solid State Drive) applications. By expanding the coverage from the 125°C lineup to 150°C, it meets the high reliability and high-efficiency processing demands of high-performance SSDs.

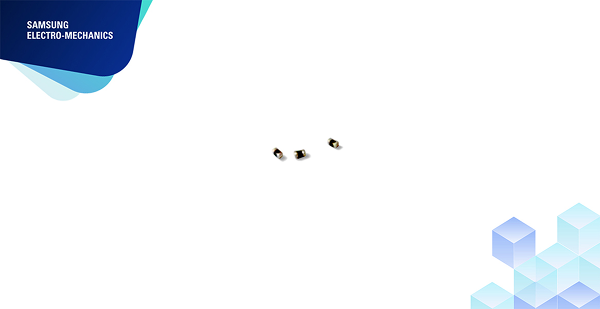

CL03M105MRR6PN# 제품 이미지.png

신제품 CL03M105MRR6PN#의 스펙을 정리한 표, Size(inch/mm), Cpacitance, Rated Voltage, TCC에 대한 내용을 제공합니다.

Samsung

Size

(inch/mm)

Capacitance

Rated Voltage

TCC

CL03M105MRR6PN#

0201/0603

1㎌

4Vdc

X8M

(X8M : Capacitance change rate in the temperature range of -55℃ to 150℃ : -50~+15%)

​

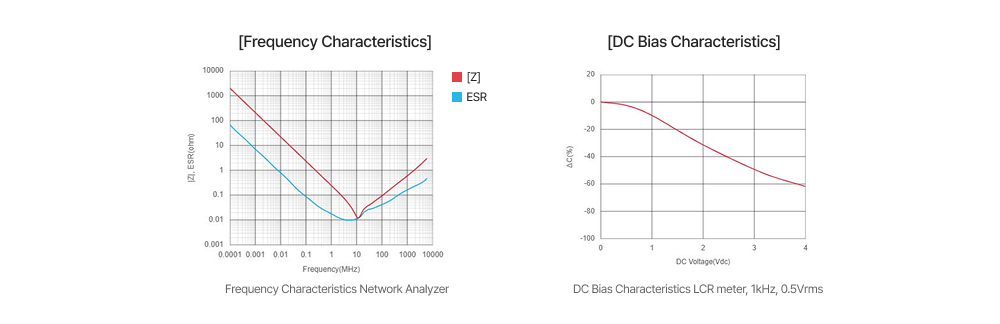

Characteristics Data

신제품 CL03M105MRR6PN#의 Frequency Characteristics와 DC Bias Characteristics 그래프 이미지.jpg
