Silicon Capacitor Ideal for
Ultra-Thin Profile and Low ESL
A Silicon Capacitor is a product that forms a Capacitor by Stacking dielectrics and internal electrodes on silicon. Through Wafer Grinding, it can be thinned down to a thickness of 100㎛ or less, allowing it to be applied within a Package without thickness constraints. Additionally, its Low ESL is advantageous for power supply stabilization, and it offers high stability against voltage and temperature fluctuations.
-

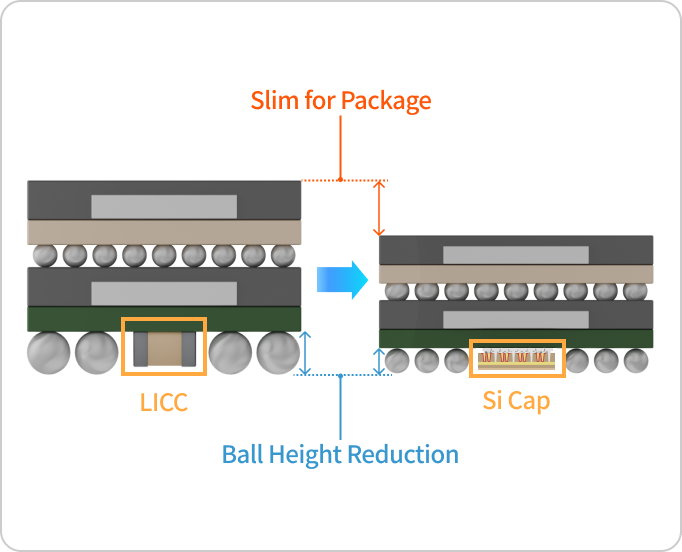

Ultra-Thin Profile
-
Low ESL
Assembly Option

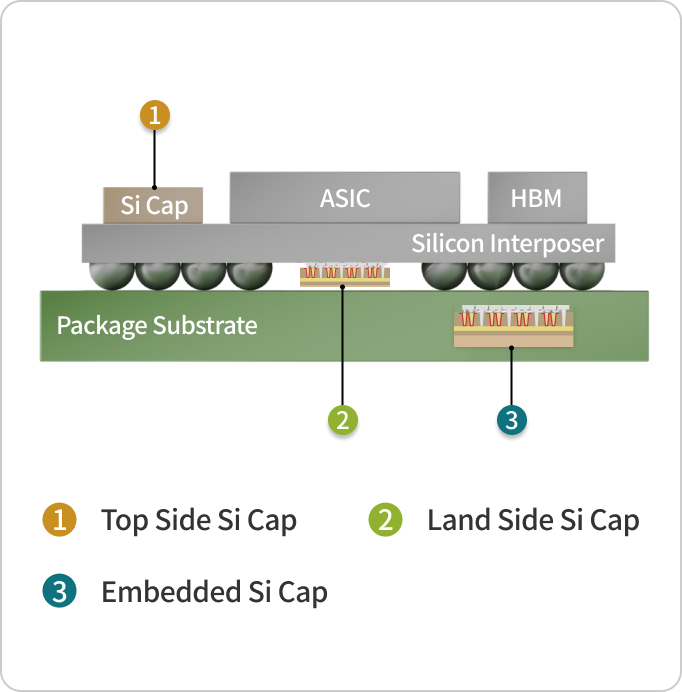

We offer the Land Side Type, which is mounted on the bottom surface of the Package, the Top Side Type, which is mounted on the top surface of the Package, and the Embedded Type, which is built into the Substrate. Additionally, we can design and manufacture products tailored to customer requirements, including Capacitance, thickness, Size, and Pad design.
A product capable of achieving an ultra-thin profile of 100㎛ or less through Wafer Grinding, offering excellent power supply stabilization thanks to its Low ESL.
