2025.02.19

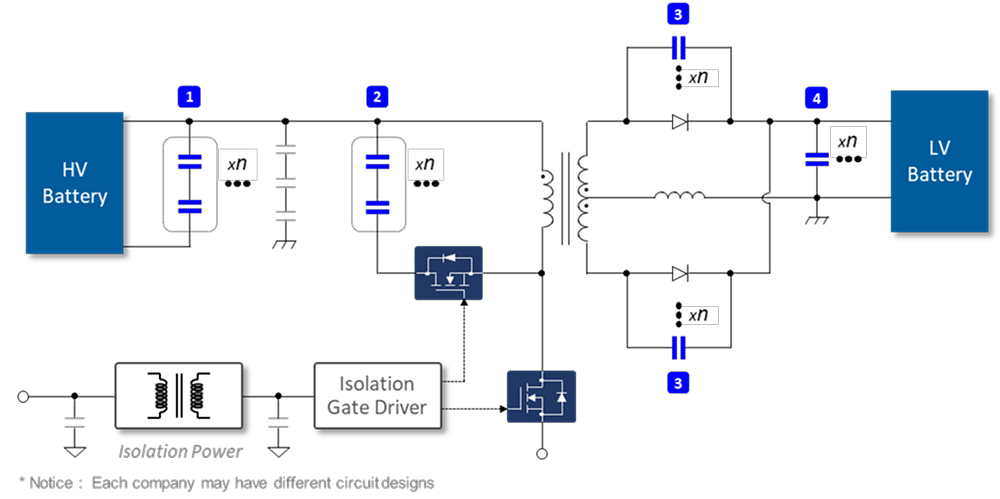

Application Guide > Automotive > LDC (Low-Voltage DC/DC Converter)

低電圧バッテリーの充電電力の増加に伴い、Low Voltage DC/DC（低電圧)コンバーターの電力も増加し、MLCC（積層セラミックコンデンサ）の信頼性向上の要求が高まっています。



そのため、サムスン電機はバッテリーラインの電源安定性と耐久性を満たす高電圧・大容量製品群を拡大し, 供給しています。




MLCC Trend : High Reliability, Voltage Stability

▷ High Voltage

▷ High Capacitance

→ Recommendation : X7R, C0G Series


Graph

Size (mm)

Rated Voltage

[Vdc]

Capacitance

~1nF

~10nF

~33nF

470nF

1㎌

 2   3

3216

630

C0G

　　　　　　　







1000

　　　　　　　









3225

630



　　　　　　　

　　　　　　　





1000

　　　　　　　

　　　　　　　

　　　　　　　





 4

5750

250









X7R

 1

630
