2025.03.19

サムスン電機 In-Vehicle Infotainment用のMLCC 1608mm X6S 22㎌ 10V 世界初の製品発売

▷ 1.6×0.8㎜ （0603 inch）サイズ、X6S（-55～105℃）、定格電圧10Vで静電容量22㎌を実現



▷ In-Vehicle Infotainment（IVI）専用、 小型・大容量 積層セラミックコンデンサCL10X226MP91IN#（以下「本製品」）を開発し、量産を開始しました。サンプル提供も可能です。



▷ 車の高性能化により、MLCCの小型化や静電容量の拡大が引き続き求められています。本製品は既存のX6Sラインアップにおいて同一サイズ / 容量の6.3V製品を10Vまで拡大し、該当アプリケーションの電圧安定性および小型化の要求を両方とも満たしています。



▷ サムスン電機は、独自のセラミックおよび電極材料の微粒化と超精密積層技術を適用し、IVI用の小型・大容量MLCCラインアップを拡大、供給を続けています。

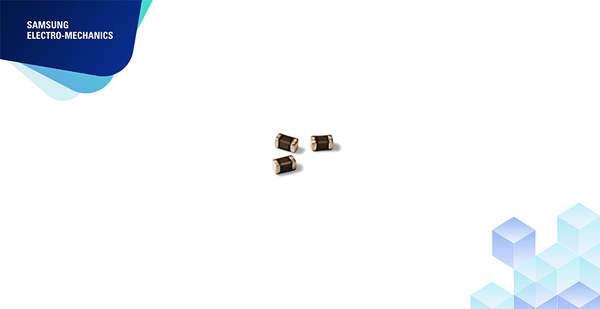

CL10X226MP91IN# 제품 이미지

신제품 CL10X226MP91IN#의 스펙을 정리한 표, Size(inch/mm), Cpacitance, Rated Voltage, TCC에 대한 내용을 제공합니다.

Samsung

Size

(mm/inch)

Capacitance

Rated Voltage

TCC

CL10X226MP91IN#

1608/0603

22㎌

10Vdc

X6S

(X6S : -55℃~105℃ における容量変化率 : ±22%)

​

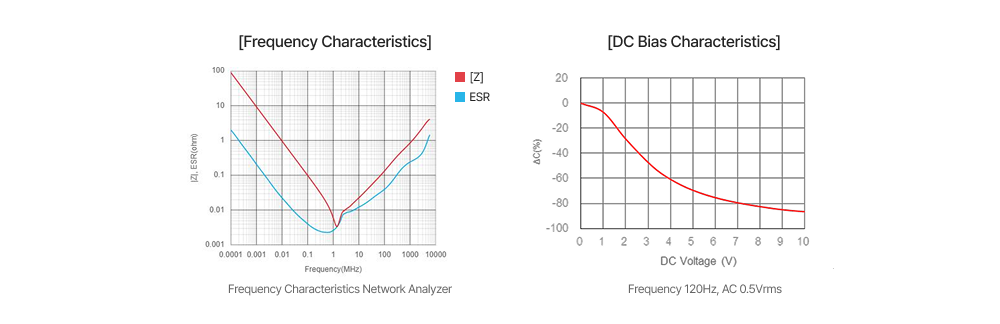

Characteristics Data

신제품 CL10X226MP91IN#의 Frequency Characteristics와 DC Bias Characteristics 그래프 이미지
