薄型化と Low ESL に有利な
Silicon Capacitor
Silicon Capacitor は、シリコン上に誘電体および内部電極を Stack して Capacitor を形成した製品です。 Wafer Grinding により厚さ100㎛以下への薄型化が可能であり、Package において厚さの制約を受けることなく適用できます。 また、Low ESL により電源の安定化に有利であり、電圧や温度の変化に対しても高い安定性を備えています。
-

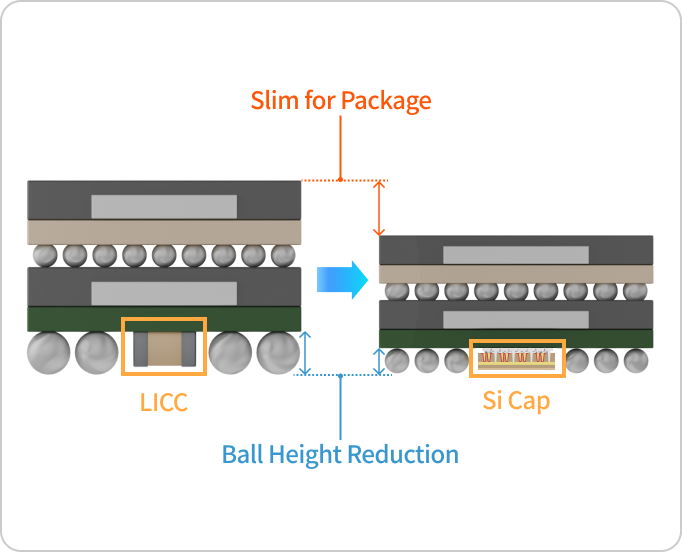

薄型化
-
Low ESL

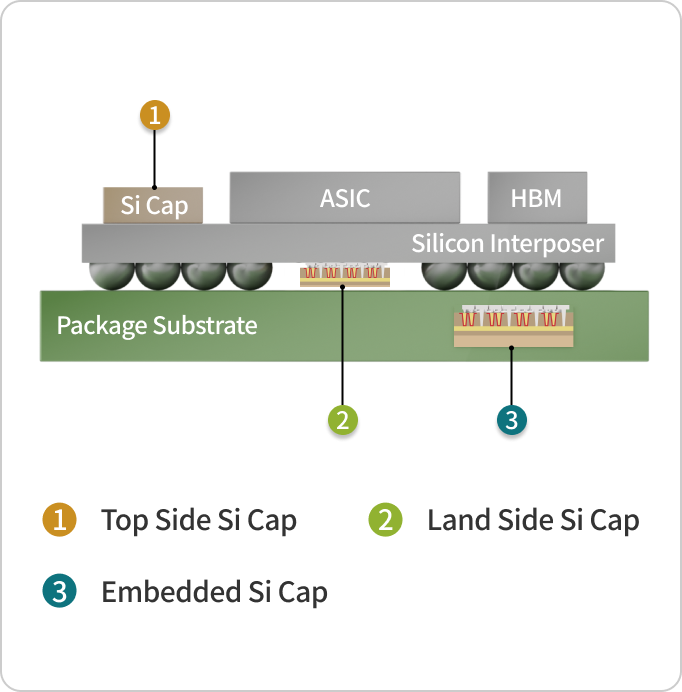

実装オプション
Package の底面に実装される Land Side Type、Package の上面に実装される Top Side Type、 および Substrate の内部に内蔵される Embedded Type を提供しています。 また、Capacitance、厚さ、Size、Pad デザインなど、お客様のご要望に合わせた設計および製造が可能です。
Wafer Grinding により厚さ100㎛以下の薄型化が可能であり、Low ESLで電源の安定化に有利な製品。
