Application Guide > Automotive > AVN(Audio Video Navigation)

車載AVN（Audio Video Navigation）は、HUD（Head-Up Display）、曲面スクリーンなどのディスプレイ技術の発展と通信連携の強化により、運転者の可視性を向上させ、没入感のあるエンターテインメント体験を提供しています。

さらに、自動運転の拡散により、AVNシステムの統合、音声制御、AIなどのさまざまな先端技術が採用される傾向にあります。



サムスン電機は、AVNに適用される高性能ICの電源安定化用途として、高信頼性、小型、大容量のMLCCラインアップを保有しており、供給も継続して拡大しています。

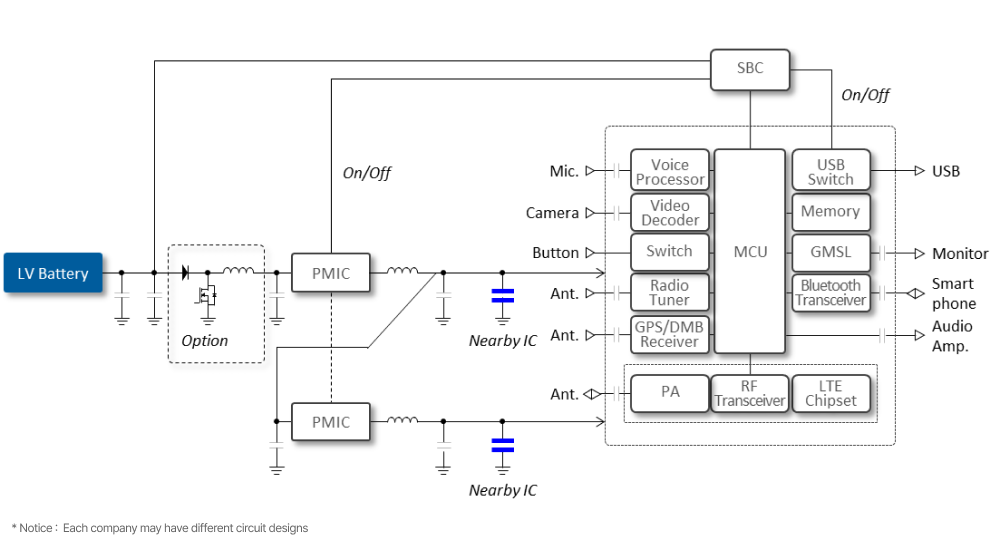

전장용 AVN(Audio Video Navigation) 관련 회로도 이미지

MLCC Trend : Miniaturization, Voltage Stability

▷ High Reliability

▷ High Capacitance

 → Recommendation :  X6S Series


Size

(mm/inch)

Rated Voltage

[Vdc]

TCC

Capacitance

Part Number

MP

Status

Sample

Availability

1608/060310Vdc

X6S

22㎌

CL10X226MP91IN#

NEW

Available

1608/0603

6.3Vdc

X6S

22㎌

CL10X226MQ91IN#

In MP

Available

1005/0402

6.3Vdc

X6S

4.7㎌

CL05X475MQQ1IN#

In MP

Available

0603/0201

10Vdc

X6S

1㎌

CL03X105MPR1IN#

In MP

Available

0603/0201

6.3Vdc

X6S

1㎌

CL03X105MQR1IN#

In MP

Available

*The products are AEC-Q200 certified automotive-grade MLCCs designed specifically for IVI(In-Vehicle Infotainment) applications.
