2025.04.16

サムスン電機、150℃保証Automotive SSD向けMLCC 0603mm X8M 1.0㎌ 4Vを

▷ 車載の電動化および高度化により、車載1台当たりに所要されるMLCCの数量が急増しており、MLCCの小型化、高温化および静電容量の拡大が必須的な部分となります。



▷ このニーズに対応してサムスン電機は、独自のセラミック及び電極材料の微粒化と超精密積層工法を適用し、 0.6×0.3㎜（ 0201 inch ）サイズ、X8M（-55～150℃）、定格電圧4V、静電容量1㎌製品を開発しました。現在量産中であり、サンプル提供も可能です。



▷ 本製品はAutomotive SSD（Solid State Drive）に特化した小型・高容量積層セラミックコンデンサ(CL03M105MRR6PN#)であり、従来125℃まで対応した同じ容量・電圧ラインアップを150℃までCoverageを拡大する事で、高性能SSDの高信頼性と高効率処理能力要求に適合しています。

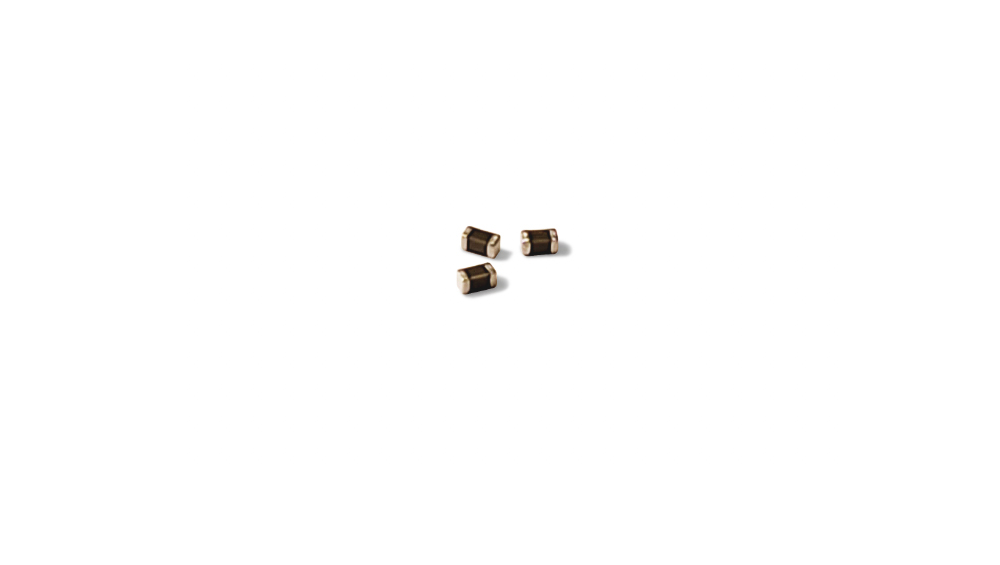

CL03M105MRR6PN# 제품 이미지

신제품 CL03M105MRR6PN#의 스펙을 정리한 표, Size(inch/mm), Cpacitance, Rated Voltage, TCC에 대한 내용을 제공합니다.

Sam​sung

Size

(mm/inch)

Capacitance

Rated Voltage

TCC

CL03M105MRR6PN#

0603/0201

1㎌

4Vdc

X8M

(X8M : -55℃~150℃ における容量変化率 : -50~+15%)

​

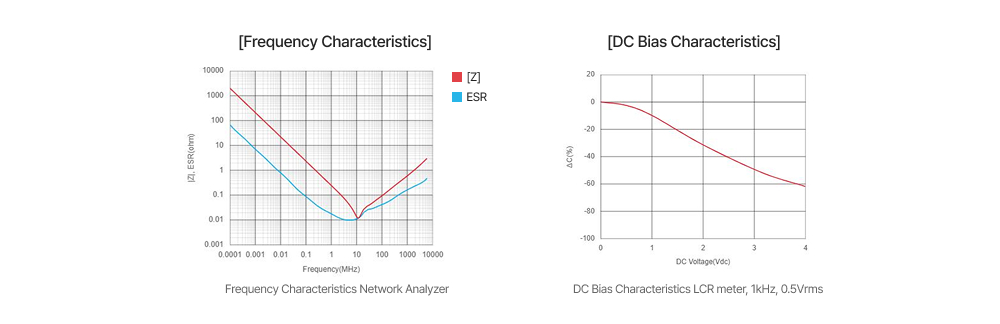

Characteristics Data

신제품 CL03M105MRR6PN#의 Frequency Characteristics와 DC Bias Characteristics 그래프 이미지.jpg
