ニュース

2025.05.21

サムスン電機、車載用2016mm 165℃パワーインダクタ新製品を発売

▷ サムスン電機は車載ADASやIVI分野での高電流・高効率の要求を満たすと同時に、制限されたスペースでも電気的特性に優れた高信頼性小型パワーインダクタを開発しました。



▷ 車載用小型パワーインダクター2.0×1.6×1.2mm（0806 inch）サイズ、動作温度165℃の製品4アイテムを発売しました。本製品は差別化できたPowder絶縁コーティングと結合力を強化した外部電極を通じて、動作温度（-55℃～165℃）、定格電圧40VおよびAEC-Q200の信頼性への要求を満たします。サンプル提供も可能です。



▷ サムスン電機は低いDC Resistance、高い定格電流および高温特性を備えた薄膜型コイル構造と独自的な磁性材料を採用し、2016mm製品の対応範囲をさらに拡大しました。（2.0×1.6mm、1.0mm → 2.0×1.6mm、1.2Tmm）

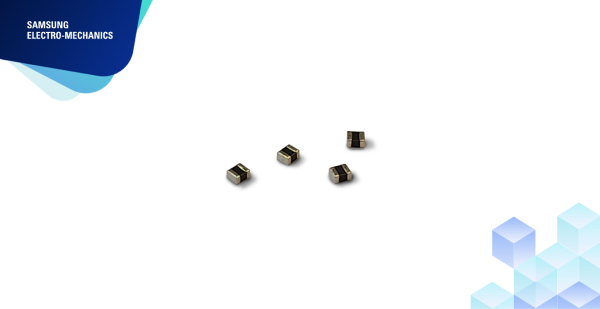

CIGB201612AF1R0MP# 0806 inch Power Inductor 제품 이미지.jpg



Specifications of 2016mm (0806 inch) small-sized metal Power Inductor

CIGB201612AF1R0MP#, CIGB201612AF1R5MP#, CIGB201612AF2R2MP#, CIGB201612AF4R7MP# 제품에 대한 스펙을 정리한 표, Samsung, LS, Tol, Rdc, lsat, lrms, Operating Temp에 대한 내용을 제공합니다.

Samsung

Ls [uH]

Tol

Rdc [mΩ]

Isat [A]

Irms [A]

Operating Temp. [℃]

165℃ 40V

max

typ

max

typ

max

typ

max

CIGB201612AF1R0MP#

1.0

±20%

45

35

3.3

3.9

3.2

3.7

165

CIGB201612AF1R5MP#

1.5

±20%

80

65

2.8

3.3

2.3

2.8

165

CIGB201612AF2R2MP#

2.2

±20%

120

105

2.5

2.9

1.9

2.3

165

CIGB201612AF4R7MP#

4.7

±20%

378

315

1.2

1.6

1.0

1.3

165

​

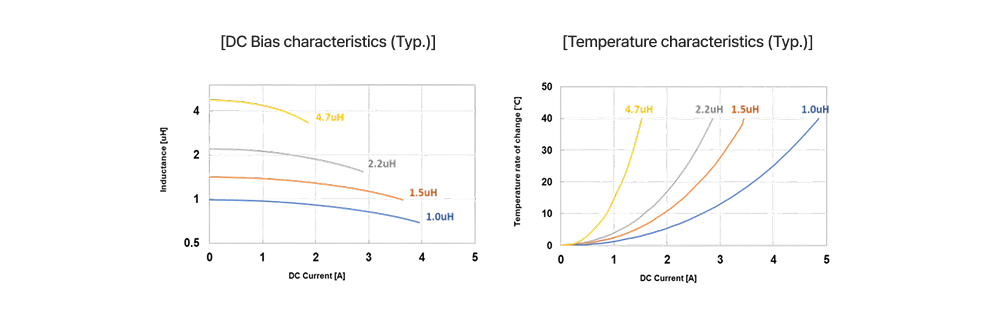

Characteristics Data

DC Bias characteristics와 Temperature characteristics 그래프.jpg

サンプルリクエストを含む他のお問い合わせは、こちらをクリックしてお問い合わせ
