電流センシングに使う超低抵抗Resistor

電流センシングに使うThick Film工法の超低抵抗製品で、抵抗誤差を小さくするために抵抗体が下面に位置するInverted実装構造になっています。高い定格電力と低い温度変化の特性を有する製品です。

Product Search
Thick Film工法
High Power、Low TCR特性の多様なLow Ohm(CSR) Series
Resistance誤差減の実装構造
抵抗体下面構造のInverted実装設計

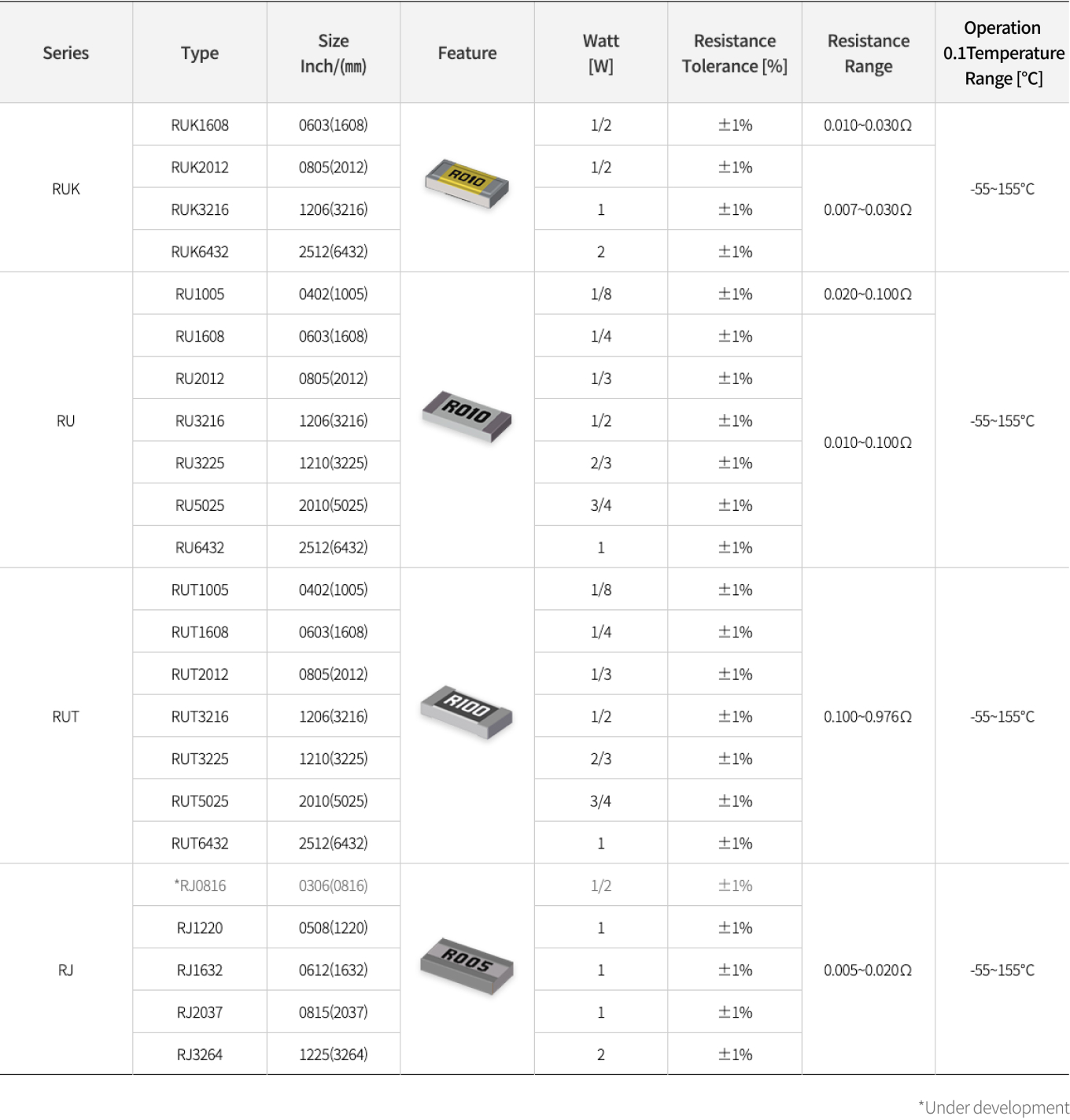

CSR (Thick Film)

イメージを拡大

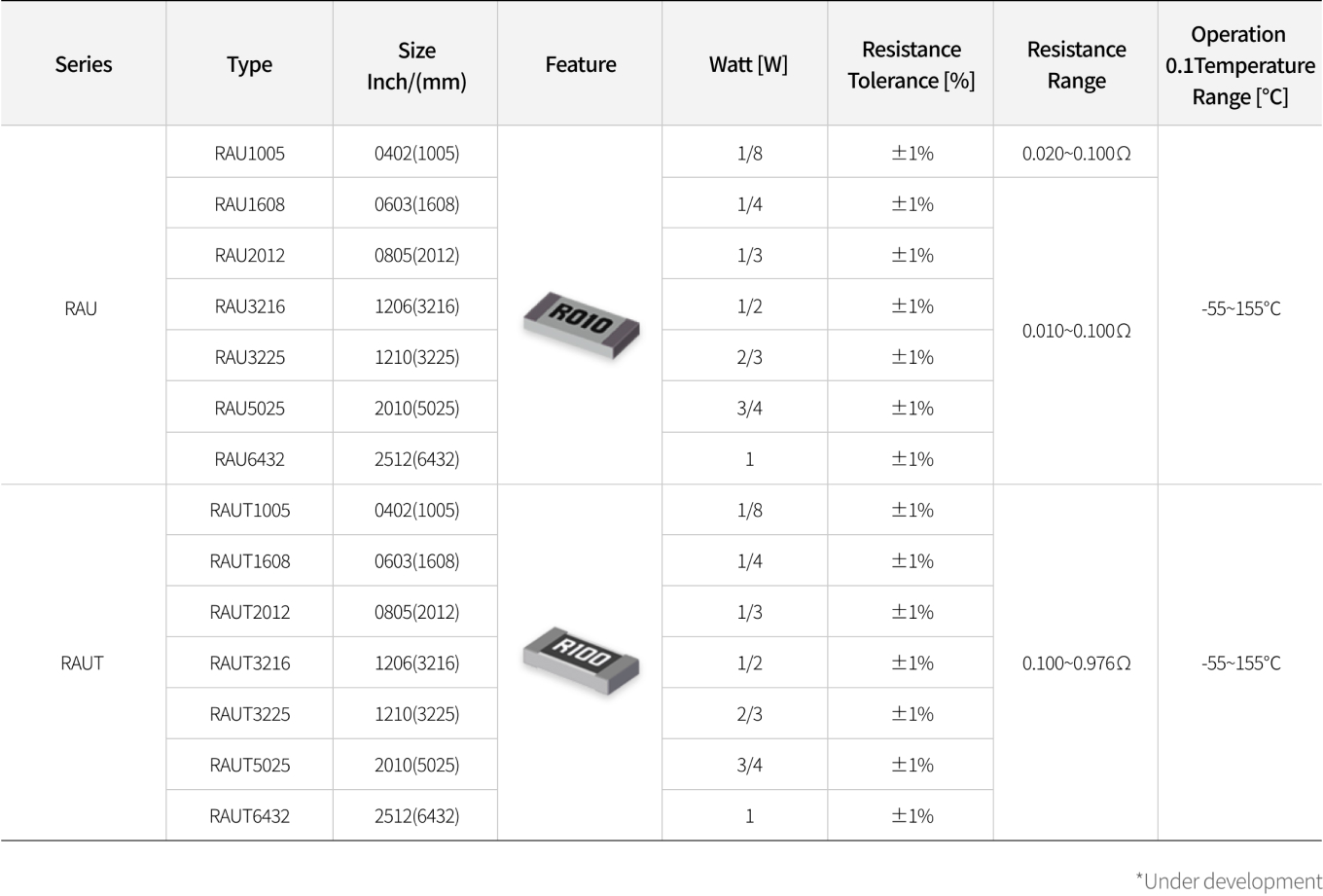

Automotive CSR (Thick Film)

イメージを拡大

電流センシングに使う超低抵抗Resistor

Power管理のための主要素子で、電流センシングに使われる超低抵抗製品です。抵抗誤差を小さくするための電極構造を採用しています。大電流Metal Plate TypeのShunt抵抗器で、高い定格電力と低い温度変化の特性を有する製品です。

Product Search
  • 優れた熱伝導度
    優れた放熱効果により、動作時に低い素体温度を維持
  • 優れた機械的強度
    大型PCB Warpageに対応可能
  • 優れたT.C.R.
    精密測定、Motorの変位センサー適用可能

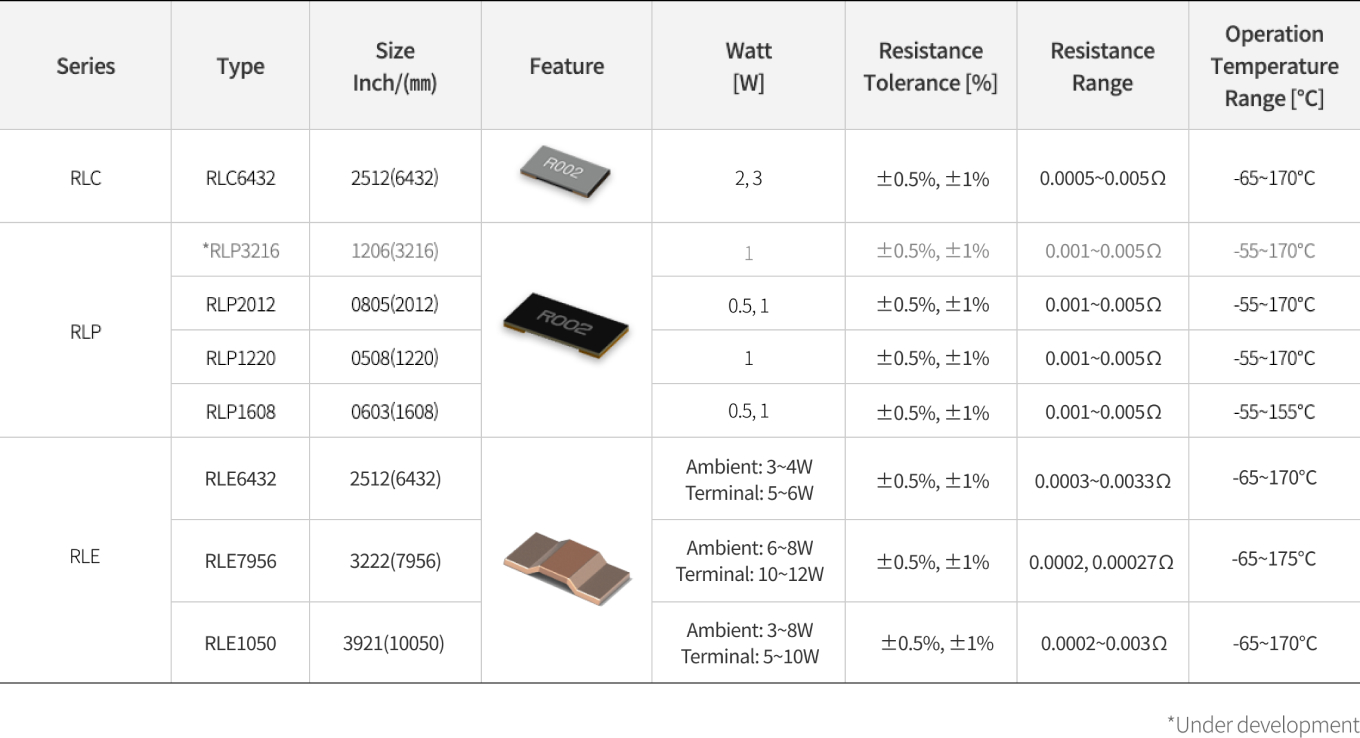

CSR (Metal)

イメージを拡大

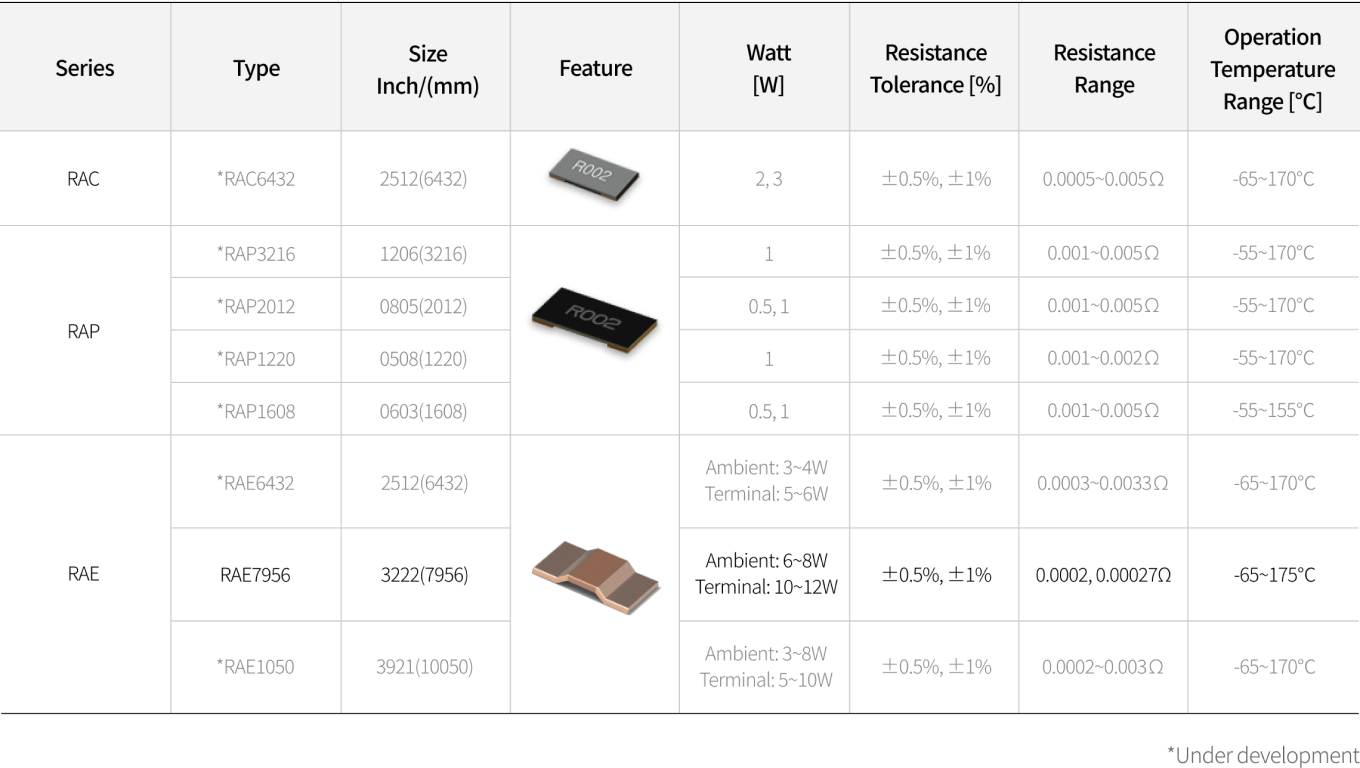

Automotive CSR (Metal)

イメージを拡大

適用分野

  • Display

  • Mobile Phone

  • CPU

  • DC-DC Converter用 電流センシング

  • インバーター電源供給装置

  • BMS (Battery Management System)
